Valve Packaging and Testing

The world’s smallest microvalve for macro flow applications can be packaged per customer requirements. Part of the solution may be to create custom packaging with the silQflo^® Silicon Servo Valve (SSV) with modular components. A customized flow control valve can be adopted into a wide range of systems. Some customizable features include the dimensions, spool valve orifices, inlet-outlet fittings, and fluid flow control ranges.



Hydraulic and pneumatic testing can be performed to validate the custom valve packages. The capabilities include performance verification, maximum flow, leakage, pressure cycling, fluid temperature testing, etc.

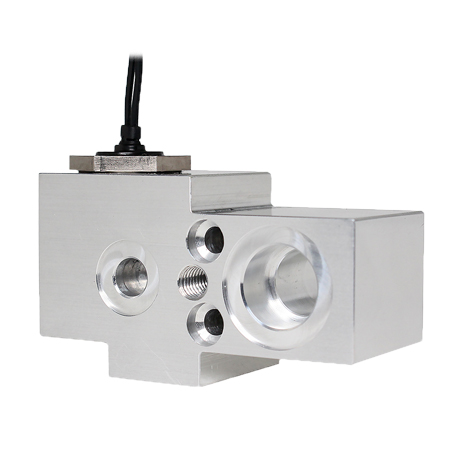

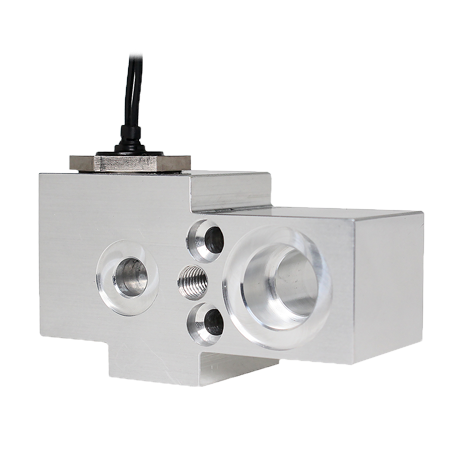

Automotive Expansion Valve

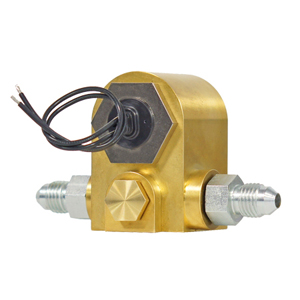

µ-Expansion Valve for HVACR

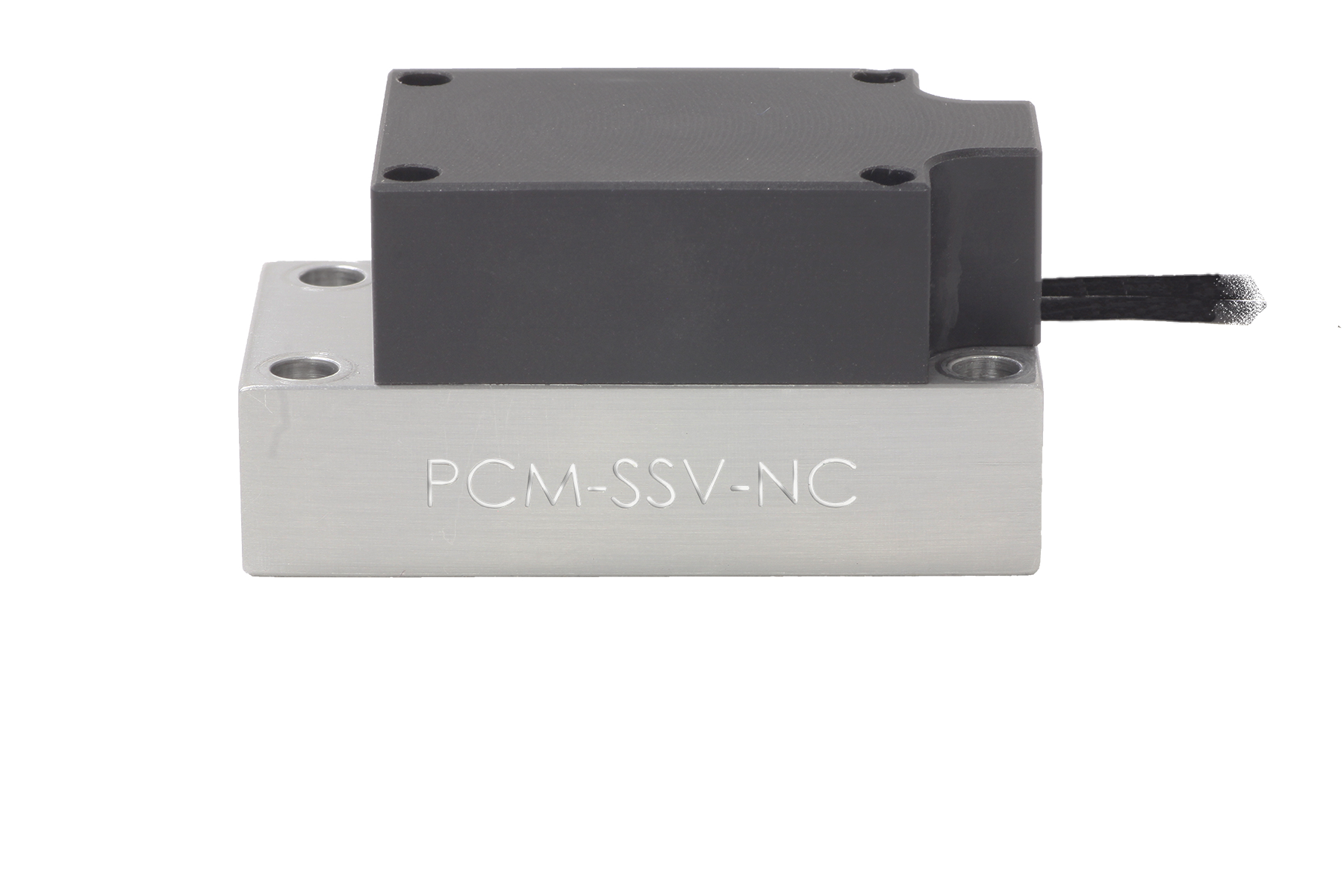

Pressure Control Module

Silicon Pneumatic Regulator

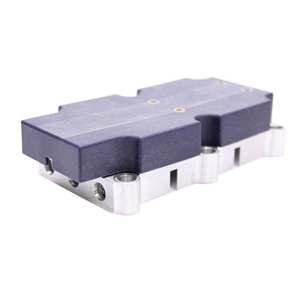

Transmission Control Module

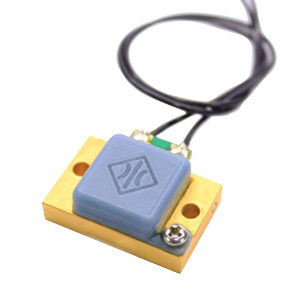

The MEMS Module is a common modular component that packages the silQflo^® Silicon Servo Valve. It can be integrated within a unique package design per engineering application requirements.



MEMS Module
